G-Typus Sprinkler irrigationis fabrica efficax est ad varias hortorum necessitates et agriculturae destinata. Provectio technologia utitur ad aquam aequaliter distribuendam, ut omnes anguli plene madefacti sint. Ad institutionem durabilem et facilem, caput aspersorium hoc variis ambitibus idoneum est, inclusis hortis domus, viriditatis et agrorum fructuum. Praeter, G-Type Sprinkler designatus est cum aqua et industria conservationis in mente, adiuvans utentes aquam vastum reducere. Eius modi imbres et imbres accommodabiles permittunt utentes ut flexibiliter componant secundum proprias plantarum necessitates ad optimum effectum irrigationis consequendum. Hoc caput aspersorium specimen est ad irrigationem efficientem, praebens optimam qualitatem umoris pro viriditate sustentationis tuae.
G-Type Sprinkler

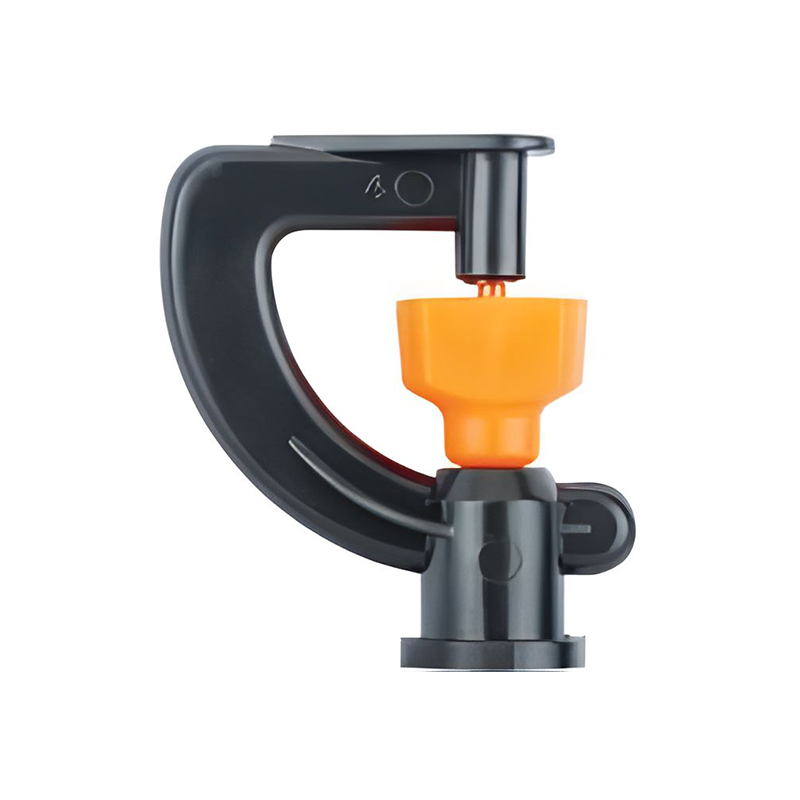

DC-M1
Invertitur aut rectitudo.
G-genus frame cum sectione cuneata informibus caecum zonae obscuratis
Nota: Expertus in foris aurantiis, 0.4m supra terram rectus. Proponimus aquam pressionem supra 0.2Mpa meliorem imbrem aequalem esse debere.
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) |
| 1.5 | 37.8 | 2.5 | 53.9 | 2.5 | 72.2 | 2.5 | 00 0 | 2.5 | 115.8 | 2.5 | 147.9 | 2.5 |
| 2.0 | 45 | 2.7 | 86.1 | 2.7 | 86.1 | 2.7 | 105.6 | 3.0 | 136.7 | 3.0 | 175 | 3.0 |
| 2.5 | 51.1 | 2.7 | 97.8 | 3.0 | 98.3 | 2.8 | 116.1 | 3.2 | 150 | 3.2 | 197.5 | 3.2 |
| 3.0 | 55.6 | 2.7 | 107.2 | 3.0 | 109.7 | 3.2 | 125 | 3.5 | 153.5 | 3.5 | 221.7 | 3.5 |
Contact Us

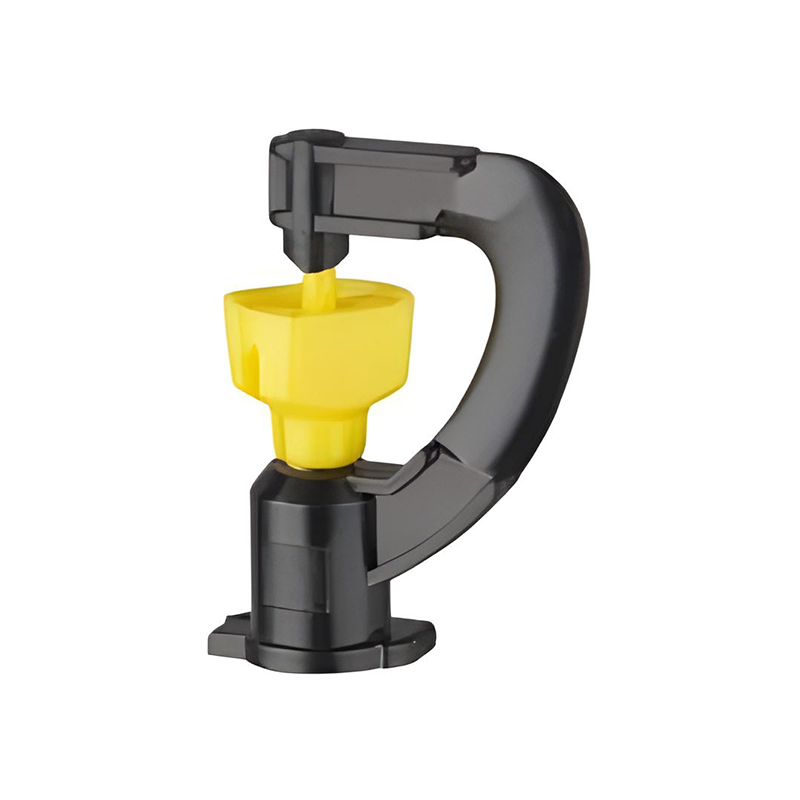

DC-M1-1
Invertitur aut rectitudo.
G-genus frame cum sectione cuneata informibus caecum zonae obscuratis
Nota: Expertus in foris aurantiis, 0.4m supra terram rectus. Proponimus aquam pressionem supra 0.2Mpa meliorem imbrem aequalem esse debere.
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) | Folw (L/H) | Radius (m) |
| 1.5 | 37.8 | 2.5 | 53.9 | 2.5 | 72.2 | 2.5 | 00 0 | 2.5 | 115.8 | 2.5 | 147.9 | 2.5 |
| 2.0 | 45 | 2.7 | 86.1 | 2.7 | 86.1 | 2.7 | 105.6 | 3.0 | 136.7 | 3.0 | 175 | 3.0 |
| 2.5 | 51.1 | 2.7 | 97.8 | 3.0 | 98.3 | 2.8 | 116.1 | 3.2 | 150 | 3.2 | 197.5 | 3.2 |
| 3.0 | 55.6 | 2.7 | 107.2 | 3.0 | 109.7 | 3.2 | 125 | 3.5 | 153.5 | 3.5 | 221.7 | 3.5 |
Contact Us

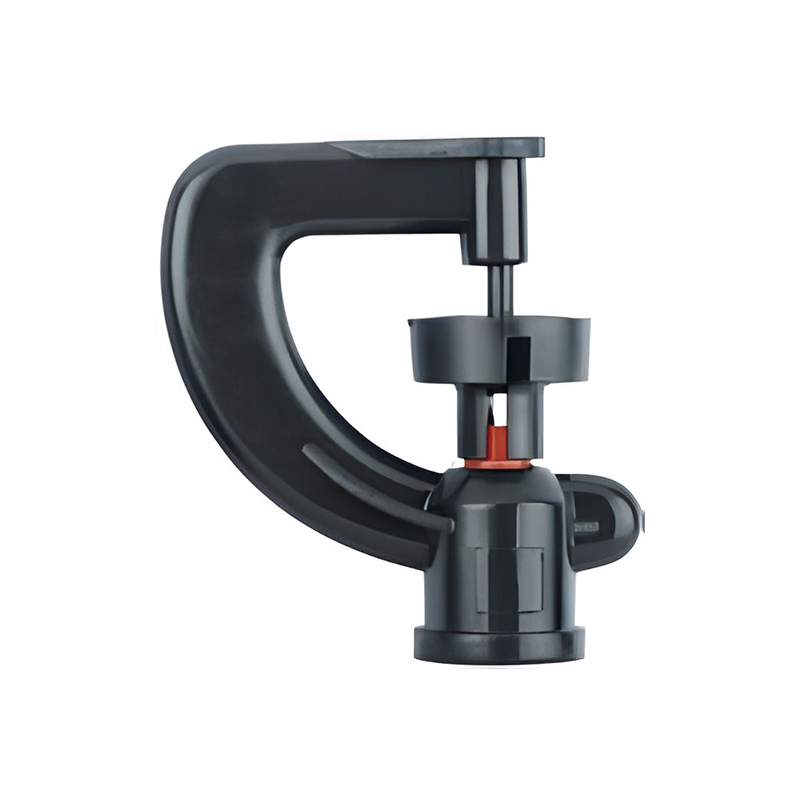

DC-M3
Invertitur aut rectitudo.
G-genus frame cum sectione cuneata informibus caecum zonae obscuratis
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) |
| 1.5 | 37.8 | 2.5 | 53.9 | 2.5 | 72.8 | 2.5 | 90 | 2.5 | 115.8 | 2.5 | 147.9 | 2.5 |
| 2.0 | 45 | 2.6 | 64.4 | 2.7 | 86.1 | 2.7 | 105.6 | 2.8 | 136.7 | 3.0 | 175 | 3.0 |
| 2.5 | 51.1 | 2.7 | 73.3 | 2.7 | 97.8 | 2.8 | 116.1 | 3.0 | 150 | 3.2 | 197.5 | 3.2 |
| 3.0 | 55.6 | 2.8 | 79.4 | 2.8 | 107.2 | 3.0 | 125 | 3.2 | 162.5 | 3.5 | 221.7 | 3.5 |
Contact Us

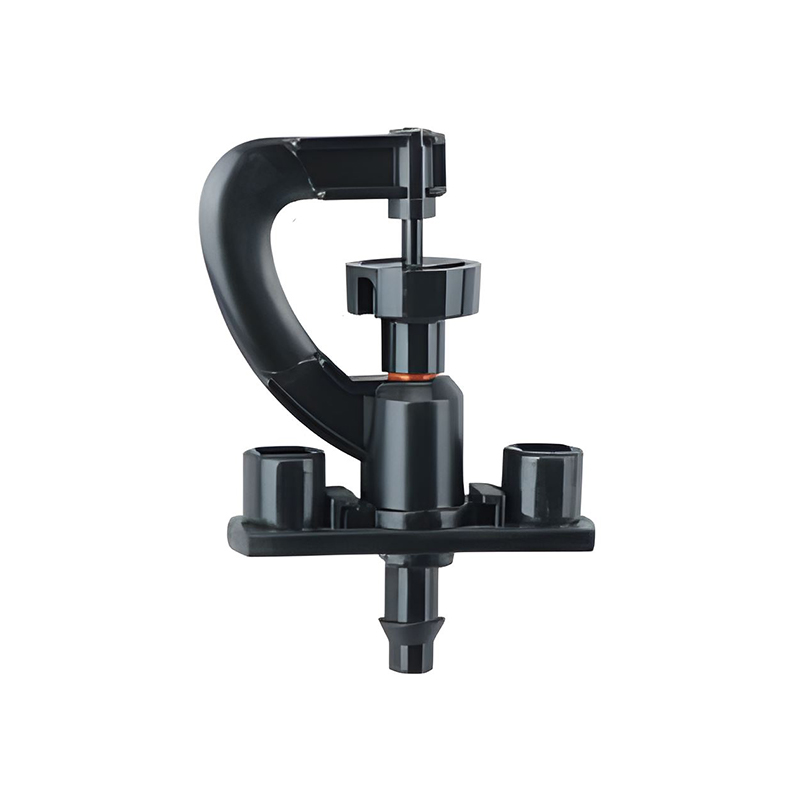

DC-M3-1
Inversa vel rectitudo.
G-genus frame cum sectione cuneata informibus caecum zonae obscuratis
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) | Folw(L/H) | Badius(m) |
| 1.5 | 37.8 | 2.5 | 53.9 | 2.5 | 72.8 | 2.5 | 90 | 2.5 | 115.8 | 2.5 | 147.9 | 2.5 |
| 2.0 | 45 | 2.6 | 64.4 | 2.7 | 86.1 | 2.7 | 105.6 | 2.8 | 136.7 | 3.0 | 175 | 3.0 |
| 2.5 | 51.1 | 2.7 | 73.3 | 2.7 | 97.8 | 2.8 | 116.1 | 3.0 | 150 | 3.2 | 197.5 | 3.2 |
| 3.0 | 55.6 | 2.8 | 79.4 | 2.8 | 107.2 | 3.0 | 125 | 3.2 | 162.5 | 3.5 | 221.7 | 3.5 |
Contact Us

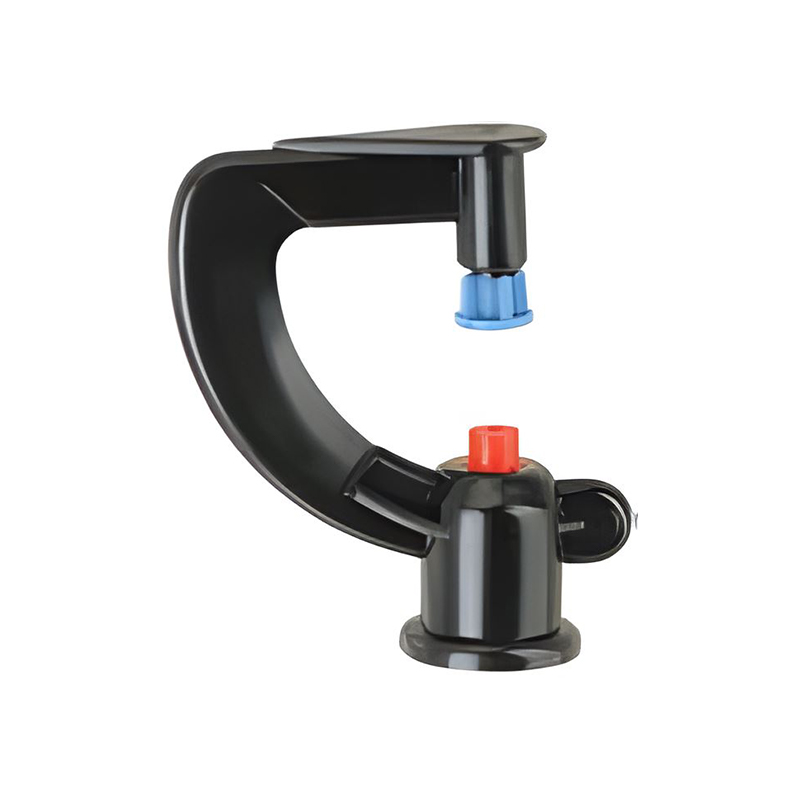

DC-M4-2
Inverted or rectitudo.
-G-genus frame cum sectione cuneum informibus potest obscuratis zonis caecum
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Radi us(m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) |
| 1.5 | 37.8 | 1.1 | 53.9 | 1.2 | 72.8 | 1.3 | 90 | 1.3 | 115.8 | 1.4 | 147.9 | 1.5 |
| 2.0 | 45 | 1.1 | 64.4 | 1.2 | 86.1 | 1.3 | 105.6 | 1.3 | 136.7 | 1.4 | 175 | 1.5 |
| 2.5 | 51.1 | 1.2 | 73.3 | 1.3 | 97.8 | 1.4 | 116.1 | 1.4 | 150 | 1.5 | 197.5 | 1.6 |
| 3.0 | 55.6 | 1.2 | 79.4 | 1.3 | 107.2 | 1.4 | 125 | 1.4 | 162.5 | 1.5 | 221.7 | 1.6 |
Contact Us

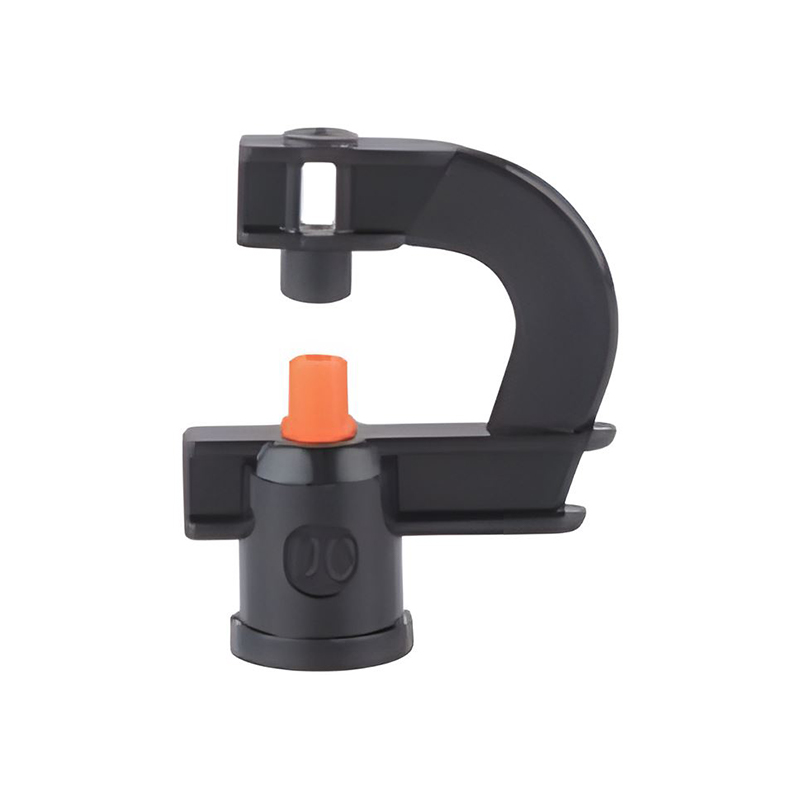

DC-M4
Inverted or rectitudo.
-G-genus frame cum sectione cuneum informibus potest obscuratis zonis caecum
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Radi us(m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) |
| 1.5 | 37.8 | 1.1 | 53.9 | 1.2 | 72.8 | 1.3 | 90 | 1.3 | 115.8 | 1.4 | 147.9 | 1.5 |
| 2.0 | 45 | 1.1 | 64.4 | 1.2 | 86.1 | 1.3 | 105.6 | 1.3 | 136.7 | 1.4 | 175 | 1.5 |
| 2.5 | 51.1 | 1.2 | 73.3 | 1.3 | 97.8 | 1.4 | 116.1 | 1.4 | 150 | 1.5 | 197.5 | 1.6 |
| 3.0 | 55.6 | 1.2 | 79.4 | 1.3 | 107.2 | 1.4 | 125 | 1.4 | 162.5 | 1.5 | 221.7 | 1.6 |
Contact Us

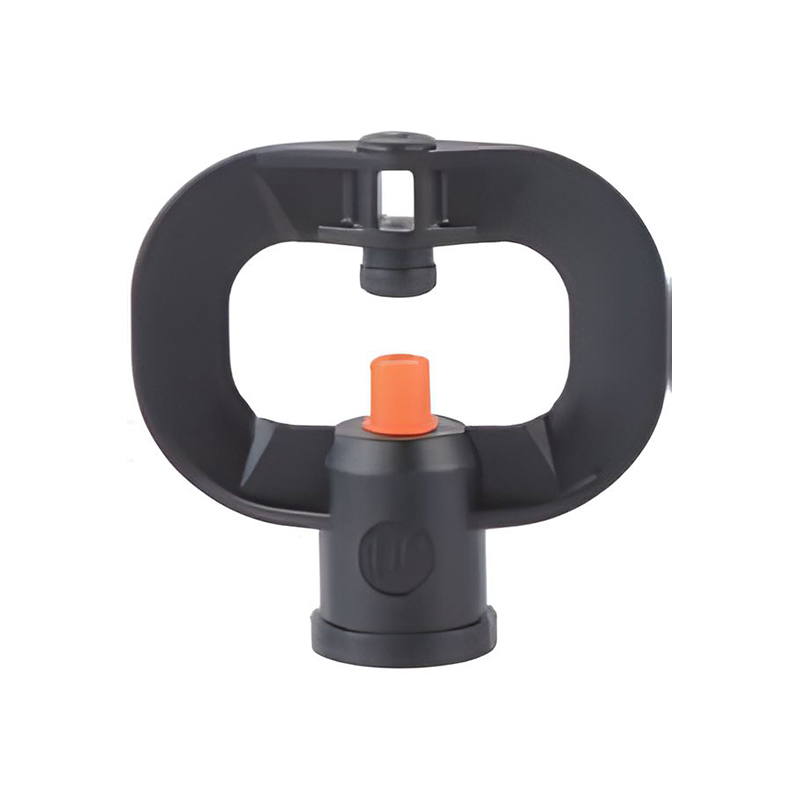

DC-M4-1
Inverted or rectitudo.
-G-genus frame cum sectione cuneum informibus potest obscuratis zonis caecum
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Radi us(m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) |
| 1.5 | 37.8 | 1.1 | 53.9 | 1.2 | 72.8 | 1.3 | 90 | 1.3 | 115.8 | 1.4 | 147.9 | 1.5 |
| 2.0 | 45 | 1.1 | 64.4 | 1.2 | 86.1 | 1.3 | 105.6 | 1.3 | 136.7 | 1.4 | 175 | 1.5 |
| 2.5 | 51.1 | 1.2 | 73.3 | 1.3 | 97.8 | 1.4 | 116.1 | 1.4 | 150 | 1.5 | 197.5 | 1.6 |
| 3.0 | 55.6 | 1.2 | 79.4 | 1.3 | 107.2 | 1.4 | 125 | 1.4 | 162.5 | 1.5 | 221.7 | 1.6 |
Contact Us

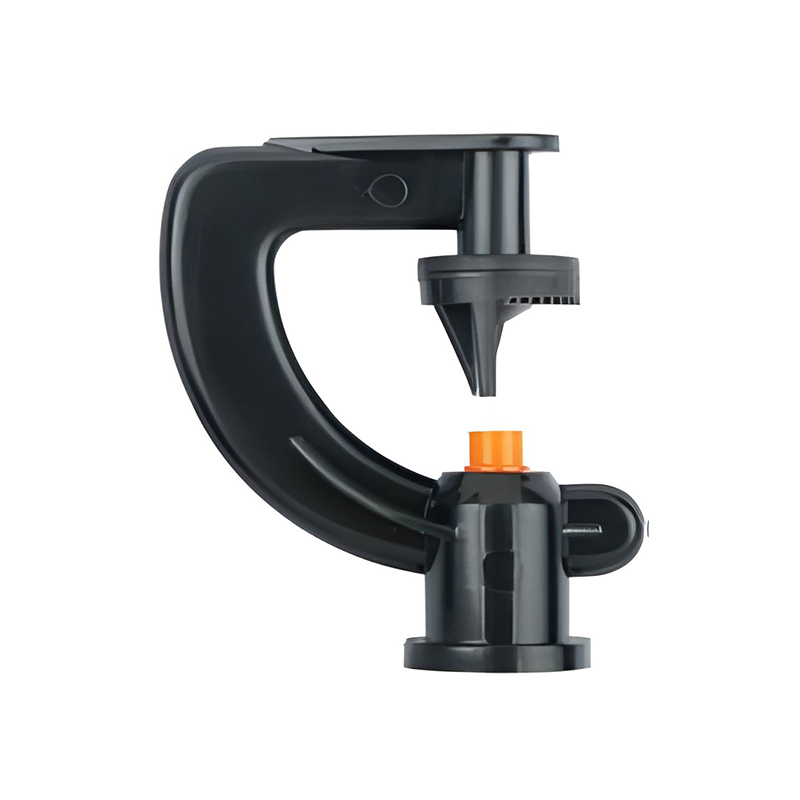

DC-M6
Inverted or rectitudo.
-G-genus frame cum sectione cuneata potest obscuratis zonis caecum
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Radi us(m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) |
| 1.5 | 37.8 | 1.8 | 53.9 | 1.8 | 72.8 | 1.9 | 90 | 2.1 | 115.8 | 2.2 | 147.9 | 2.2 |
| 2.0 | 45 | 2.0 | 64.4 | 2.0 | 86.1 | 2.0 | 105.6 | 2.2 | 136.7 | 2.4 | 175 | 2.4 |
| 2.5 | 51.1 | 00 0 | 73.3 | 2.0 | 97.8 | 2.2 | 116.1 | 2.3 | 150 | 2.4 | 197.5 | 2.5 |
| 3.0 | 55.6 | 2.2 | 79.4 | 2.2 | 107.2 | 2.3 | 125 | 2.5 | 162.5 | 2.6 | 221.7 | 2.6 |
Contact Us

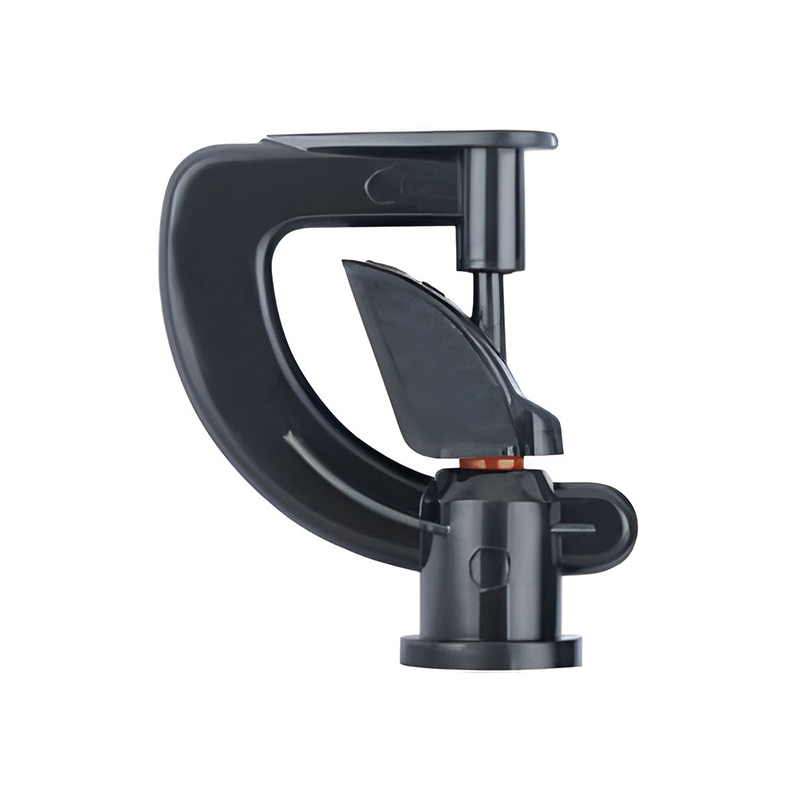

DC-M2
Inverted or rectitudo.
-G-genus frame cum sectione cuneum informibus potest obscuratis zonis caecum
| COLLUM color / Diameter | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 1.8mm | 2.0mm | ||||||
| Aqua Pressura (bar) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Radi us(m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) | Folw(L/H) | Badinobis (m) |
| 1.5 | 37.8 | 2.8 | 53.9 | 3.0 | 72.8 | 3.3 | 90 | 3.3 | 115.8 | 3.3 | 147.9 | 3.3 |
| 2.0 | 45 | 3.0 | 64.4 | 3.2 | 86.1 | 3.5 | 105.6 | 3.5 | 136.7 | 3.5 | 175 | 3.5 |
| 2.5 | 51.1 | 3.2 | 73.3 | 3.3 | 97.8 | 3.6 | 116.1 | 3.6 | 150 | 3.7 | 197.5 | 3.7 |
| 3.0 | 55.6 | 3.4 | 79.4 | 3.4 | 107.2 | 3.7 | 125 | 3.7 | 162.5 | 3.7 | 221.7 | 3.7 |
Contact Us

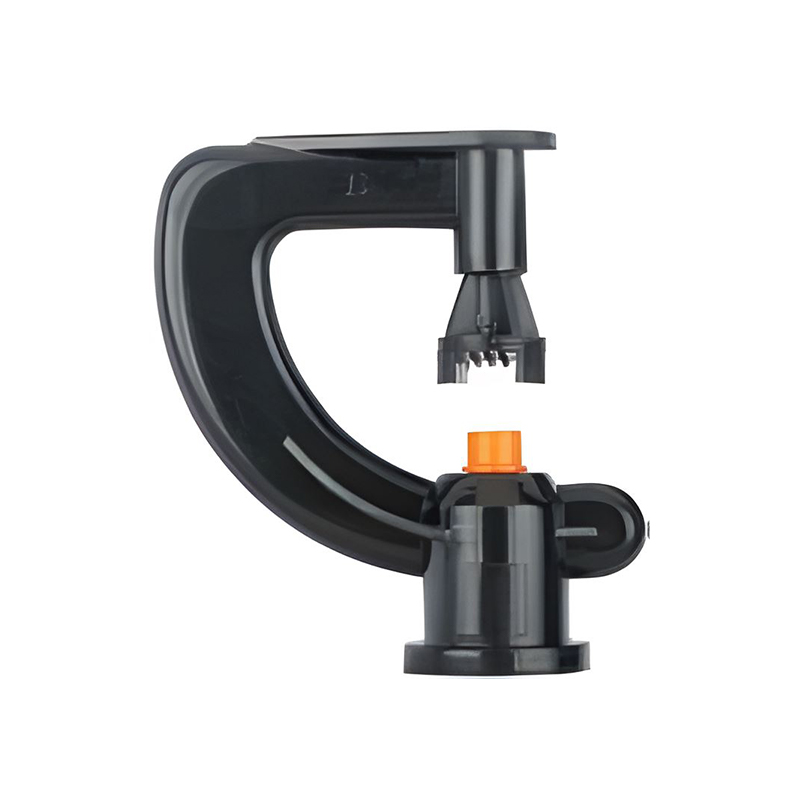

DC-M5
G-Refractivum Sprinkler
| Pressura | 2.0~2.5Bar |
| Range | 3.0~5.0m |
| Flux | 35~160 L/H |
Contact Us

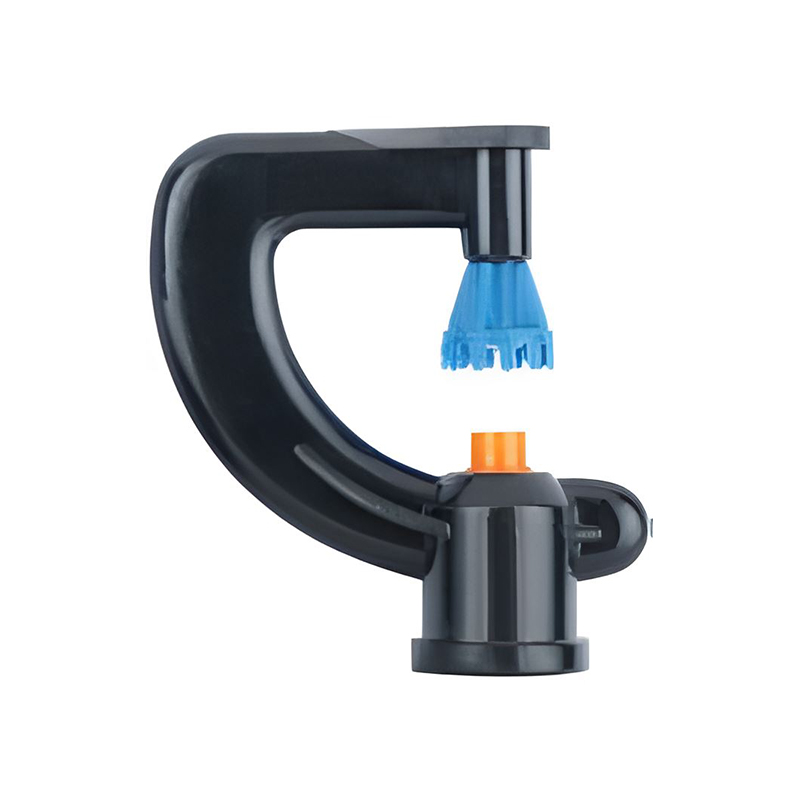

DC-M8
CCCLX° G-Refractivum Sprinkler
| Pressura | 2.0~2.5Bar |
| Range | 3.0~5.0m |
| Flux | 35~160 L/H |
Contact Us

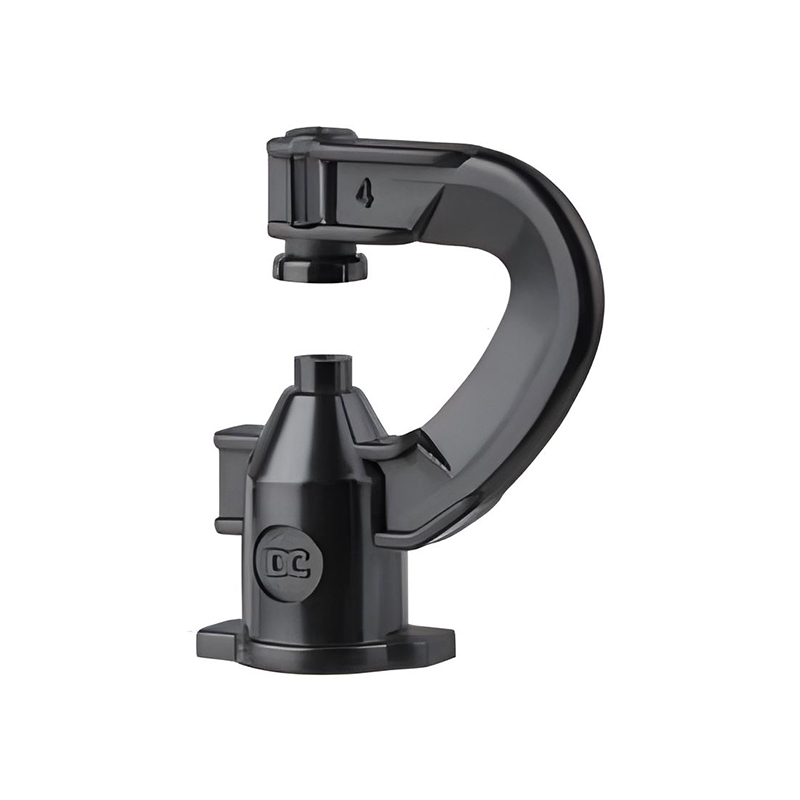

DC-M9
G-Refractive Nubila Sprinkler
| Pressura | 2.0~2.5Bar |
| Range | 1.2~2.0m |
| Flux | 35~200 L/H |
Contact Us
